Products/Aluminum substrate circuit board
Metal-core / aluminum substrate boards for LED and thermal-management applications.
Aluminum substrate (metal-core) boards deliver thermal management for LED lighting and high-power modules. We offer standard and high thermal conductivity aluminum bases in single-side configurations.
Representative boards we manufacture. Specs vary by design — upload Gerber for an exact quote.

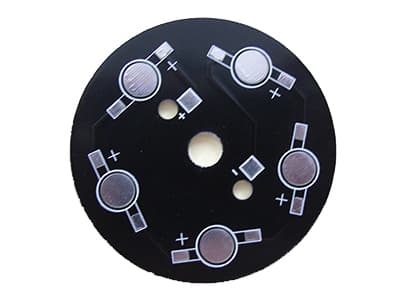

Color: matte black Thermal conductivity: 2W Size: 36mm*36mm

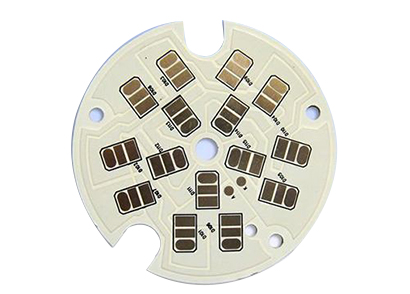

Color: photosensitive white Thermal conductivity: 1.5W Size: 12mm*12mm

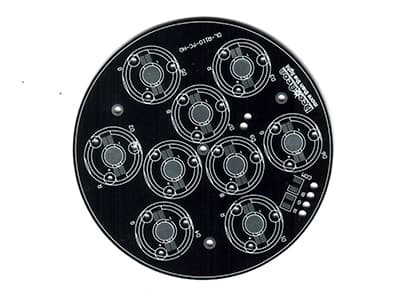

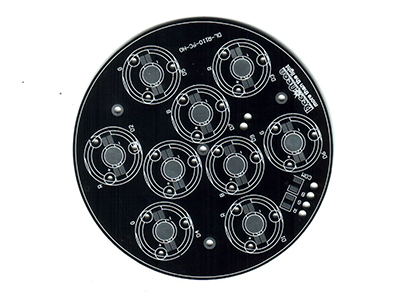

Colour: Black Thermal conductivity: 2W Size: 74mm*74mm

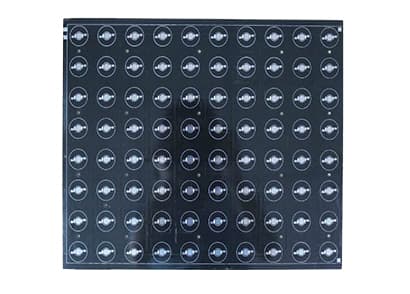

Color: photosensitive black Thermal conductivity: 2W Size: 260mm*250mm
Dimensions: 50mm*50mm Thermal conductivity: 1W This board is mainly used for lighting.
In today’s globalized economy, it’s not only important to build a great product but build it at a great price. SNC doesn’t resell boards like most suppliers, we manufacture. Along with priding ourselves in running a lean operation, our partnerships empower us to provide customers with the most favorable pricing. Most re-sellers in the North American market enjoy a 50%+ markup on standard specs boards, and 100-200% markup on custom quotes. At SNC, we want you to give you peace of mind that you are always receiving the best value. Along with our quality, service, and pricing, it’s our humble opinion that you will be hard pressed to find a better overall value. No matter which sector you're in, it's crucial that you have a reliable source for high-quality, affordable printed circuit boards designed to fit your criteria. We provide support throughout the PCB fabrication process, starting from design, to ensure that the delivered product is exactly to spec. We look forward to hearing from you and working with you on your next PCB project.
Standard and high thermal conductivity aluminum base, single-side metal core boards.
Upload Gerber (and BOM for assembly) — engineering-reviewed reply within 24 business hours.
Start RFQ →
